Dryer Vent Code Requirements | Explained!

When it comes to home safety, understanding the code requirements for your dryer vent is crucial. Not only can these guidelines help prevent fires, but they can also improve the efficiency of your dryer. In this article, we’ll explain the specific code requirement related to dryer venting as well as going over a few tips you should know.

Dryer Vent Code

Dryer vent code requirements are found in Section M1502 of the 2021 International Residential Code (IRC). These guidelines are designed to ensure safe and efficient operation of your clothes dryers exhaust system. Its covers aspects such as the maximum length of ducts, the recommended duct size, duct material, duct termination location, and more.

Understanding Why Dryer Vent Codes Are Important

Before we dive into the specific requirements, it’s important to understand why these code requirements are so crucial. Here is a list of some of the reasons why these requirements are outlined in the code:

  1. Fire Prevention: Lint, which is highly flammable, can accumulate in the dryer vent system. If the system is not installed and maintained correctly, it can pose a serious fire risk.
  2. Efficiency: A properly installed dryer vent system will allow your dryer to operate more efficiently, reducing energy consumption and saving you money on your utility bills.
  3. Moisture Control: A well-ventilated dryer helps prevent the buildup of moisture, which can lead to mold and mildew.
  4. Appliance Lifespan: Following the dryer vent code requirements can also help extend the lifespan of your dryer.

Common Code Requirements for Dryer Vents

Now that we’ve covered the importance of these requirements, let’s get into the specific code sections.

One important think to note here is to understand that most people use the term “vent” while the code refers to it as an “exhaust duct“, therefore we will use the term here interchangeably for the ease of understanding. However one should note that an exhaust duct is the correct terminology to use instead of vent.

With that said, here are some of the key code requirements:

Dryer Duct Termination

Per Section M1502.3

  • The termination point of the exhaust duct must terminate to the outside of the building.
  • Exhaust duct termination shall be in accordance with the manufacturers installation specifications.
  • If the manufacturers specifications do not specify, then the duct must terminate at least 3 feet from any openings into the house, such as windows, doors, and vents.
  • Duct termination shall not be blocked by any type of screen or guard.
  • It should have a back-draft damper to prevent outdoor air from entering the home.

Duct Joints

Per Section M1502.4.2

  • The inserted end of the duct shall extend into the adjoining duct in the direction of airflow.
  • Duct joints shall be sealed and mechanically fastened in accordance with Section M1601.4.1.
  • Ducts must not be joined together with screws or similar fasteners which protrude more than 1/8 of an inch into the inside of the duct.
  • Dryer duct enclosed in wall or ceiling cavities shall not be deformed.

Duct Material

Per Section M1502.4

  • The exhaust duct shall be made of rigid metal that has a smooth interior finish and not be less than 0.0157 inches thick (No. 28 gage)
  • The exhaust duct shall be at least 4 inches minimum in diameter.
  • Transition ducts shall not be more than 8 feet in length and shall be in accordance with UL 2158A.
  • Booster fans are prohibited.
  • Exhaust ducts shall be supported at intervals not exceeding 12 feet in length.

Transition Duct vs Exhaust Duct

Before we get into the maximum length of the exhaust duct, we need to understand the difference between a transition duct verses an exhaust duct.

A transition duct is used to connect the dryer to the exhaust duct system. These are typically flexible ducts that are constructed of metal foil fabric on a spiral wire frame. This duct must however be listed and labeled per UL 2158A.

An exhaust duct is the actual exhausting system that connects from the transition duct to the termination point (outside).

As we saw above a transition duct cannot be more than 8 feet in length and the duct material must be per UL 2158A. In contrast an exhaust duct cannot be of a flex type and must be constructed of ridged metal with a smooth interior surface.

While an exhaust duct can be placed in a wall or ceiling cavity, a transition duct can NOT be sealed within construction.

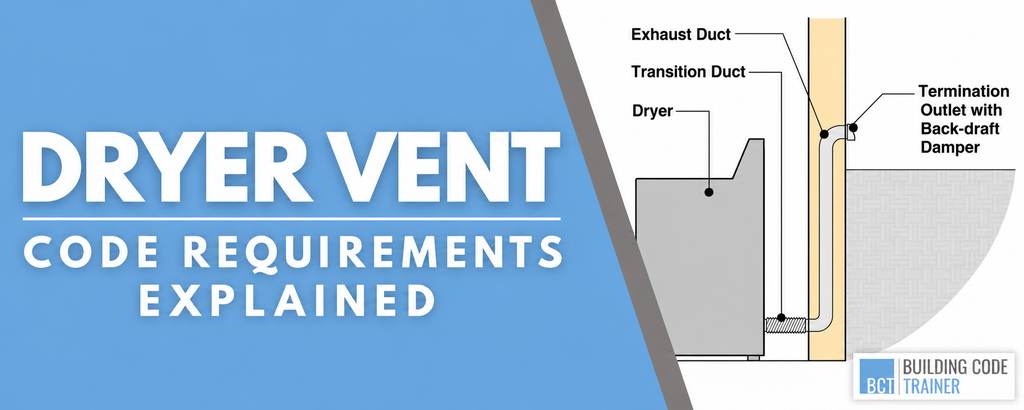

Here an a graphic that will help to understand the difference:

dryer vent code

Fun Tip: Think of a dryer vent as a three part system: The dryer itself, the transition duct, and the exhaust duct.

Exhaust Duct Length

Now that you understand the difference between a transition duct and an exhaust duct, let us take a look at the maximum length of the dryers exhaust duct.

Per Section M1502.4.6

  • The maximum length of the exhaust duct shall not exceed 35 feet from the transition duct connection to the outlet termination point. However, it is important to note that the maximum length of the duct shall be reduced where fitting are used.

To best understand how these fittings reduce this maximum length, the code provides a table:

TABLE M1502.4.6.1
4-inch radius mitered 45-degree elbow2 feet 6 inches
4-inch radius mitered 90-degree elbow5 feet
6-inch radius smooth 45-degree elbow1 foot
6-inch radius smooth 90-degree elbow1 foot 9 inches
8-inch radius smooth 45-degree elbow1 foot
8-inch radius smooth 90-degree elbow1 foot 7 inches
10-inch radius smooth 45-degree elbow9 inches
10-inch radius smooth 90-degree elbow1 foot 6 inches

For example based on the table a 4 inch duct fitting with a 90 degree elbow reduces the length by 5 feet. So instead of 35 feet, the maximum length will be 30 feet. If another elbow is introduced, an additional 5 feet of reduction is necessary.

Installation Tips for Complying with Dryer Vent Code Requirements

Here are some tips to help you install a dryer vent that complies with the code requirements:

  • Plan the Route: Plan the shortest and most direct route for the dryer vent. Make sure to consider the length limitations and bend requirements.
  • Choose the Right Material: Use rigid metal ducting for the exhaust duct. A flexible type duct that complies with UL 2158A is only allowed for transition ducts.
  • Secure the Ducts: Use metal tape to secure the duct joints and seams. Avoid using long screws or rivets that exceed what the code allows as they can catch lint and cause buildup.
  • Clean Regularly: Regular cleaning is essential to maintain the efficiency of the dryer vent and to prevent fire hazards. It’s recommended to clean the dryer vent at least once a year or more frequently if you use your dryer heavily.

Professional Installation and Inspection

While it’s possible to install a dryer vent on your own, hiring a professional can ensure that the job is done correctly and in compliance with all code requirements. Professionals have the necessary training and experience to handle the installation efficiently and safely. They can also spot potential issues that might not be apparent to the untrained eye.

In addition to professional installation, regular professional inspections are also important. These inspections can help identify any issues such as blockages, leaks, or damage to the vent that need to be addressed.

Final Thoughts

Understanding and adhering to dryer vent code requirements is not just about following rules, it’s about ensuring the safety and efficiency of your home. While these guidelines may seem technical and detailed, they are designed to prevent dryer fires and promote the efficient operation of your appliance.

Whether you’re installing a new dryer vent, or checking an existing one, it’s always a good idea to consult with a professional to ensure compliance with these codes. Remember, a well-ventilated dryer isn’t just a code requirement, it’s a crucial aspect of home safety.

In the end, the peace of mind that comes from knowing your dryer vent is properly installed and maintained is well worth the effort. So, take the time to understand these requirements and ensure your dryer vent system is up to code. Your safety, and the safety of your home, may depend on it.

Remember, the key to a safe and efficient dryer vent system lies in understanding the code requirements, proper installation, and regular maintenance. With these in place, you can enjoy the benefits of your dryer without much worry.

For more information, see Section M1502 of the 2021 International Residential Code for a more in-depth look at clothes dryer exhaust requirements.
